Exceptional Power and Filtration in a Compact Package
VecLoader Spartans deliver the perfect balance of power, filtration, and compact design. These versatile vacuum systems are built to handle nearly any flowable bulk material or liquid across a wide range of industrial conveying and recovery applications.
Thanks to their modular design, Spartans can be paired with cyclone separators, filter-receivers, collection systems, classifiers, self-dumping hoppers, or intermediate collection devices, making them adaptable to virtually any job. Units are offered in electric, diesel, or LP power, and can be configured as skid, crane truck, or trailer-mounted systems.
.webp?width=1192&height=824&name=Spartan%20(1).webp)
Specifications
| Models | Spartan II | Spartan III | Spartan 50 |
|---|---|---|---|
| Max: M3hr/mmHg | 1,340 / 16" | 1,340 / 16" | 1,920 / 16" |
| Std Horsepower | 50 Hp (Electric) 49 Hp (LP or Diesel) | 50 Hp (Electric) | 75 Hp (Electric) |
| Primary Filtration | Coated Kleanprop™ Filter bags Pulse air cleaned | Coated Kleanprop™ Filter bags Pulse air cleaned | Coated Kleanprop™ Filter bags Pulse air cleaned |
| Secondary Filtration | Pleated cartridge | Pleated cartridge | Pleated cartridge |
| Max Hose Diameter | 4" | 4" | 4" |
| Dimensions (L x W x H) | 122" x 47" x 89 3/8" | 75 1/4" x 82" x 100" | 75 1/4" x 82" x 100" |
.jpg?width=3072&height=2060&name=spartan-trailer-mounted%20(1).jpg)
Exceptional Power and Filtration With A Compact Size
VecLoader Spartans are versatile vacuum systems combining exceptional power and filtration with compact size. Spartans are capable of vacuuming most flowable bulk material and liquids in a wide range of industrial vacuum conveying or recovery settings. Modular in design, Spartans are easily matched to a broad assortment of cyclone separators, filter-receivers, collection systems, classifiers, self-dumping hoppers and intermediate collection devices. Units are available in electric, diesel and LP power and in skid, crane truck and trailer mounted configurations.

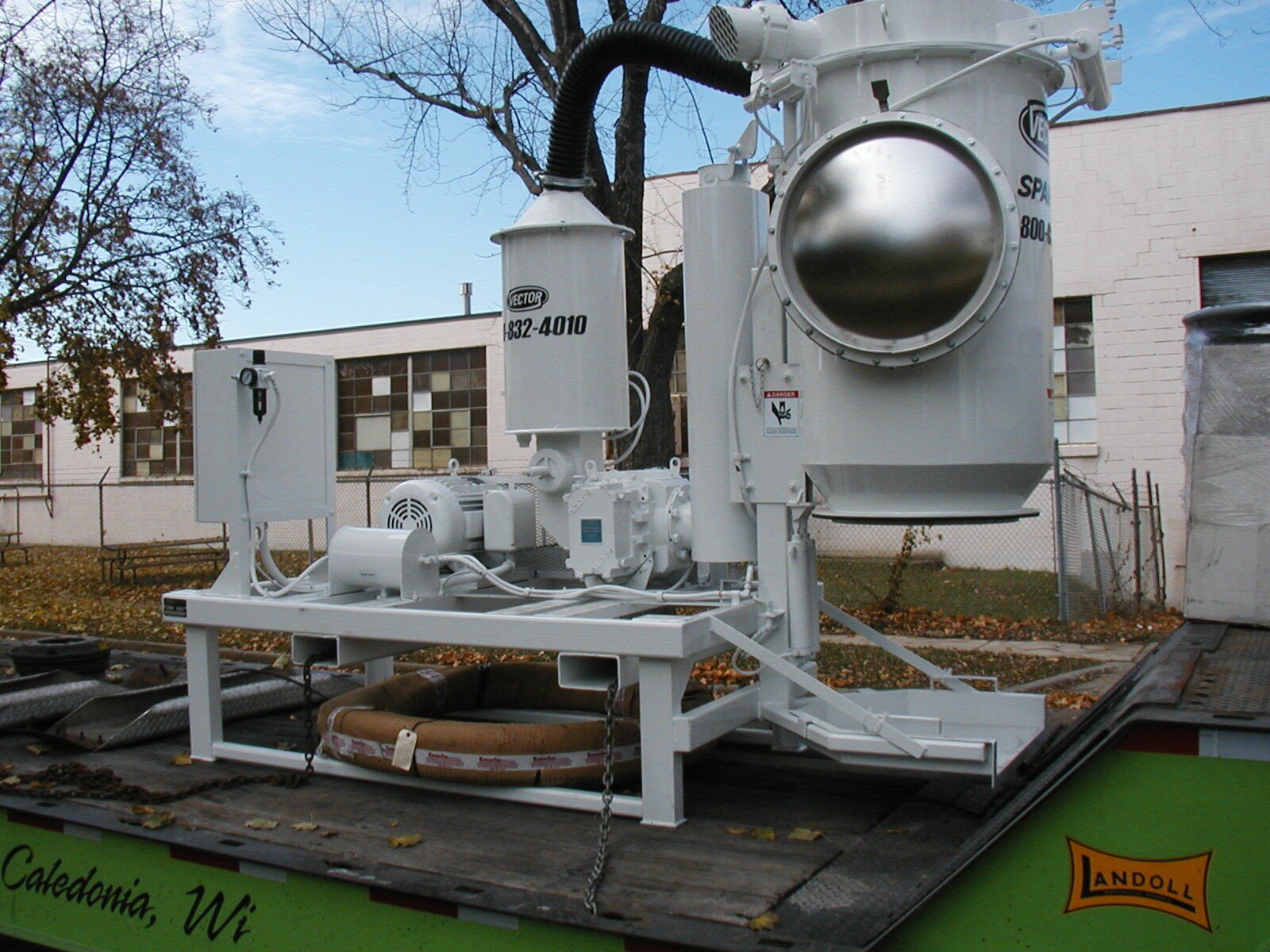

The Spartan FM is a heavy-duty/continuous portable (skid mounted) vacuum loader with an integrated two-yard hopper. With a smaller footprint than the FM, but with comparable power, the compact Spartan II is engineered for flexibility in a wide range of applications and available as LP diesel, or electric power.
The Spartan II is towable by an in-plant vehicle, easily operated by one person and loads into 55-gallon drums. Spartan IIs are often matched to a one or two yd self-dumping hopper for added flexibility.
VECLOADER SPARTAN INDUSTRIAL VACUUM LOADERS
Exceptional Performance, Power & Filtration in Compact, Versatile and Unique Packages!!

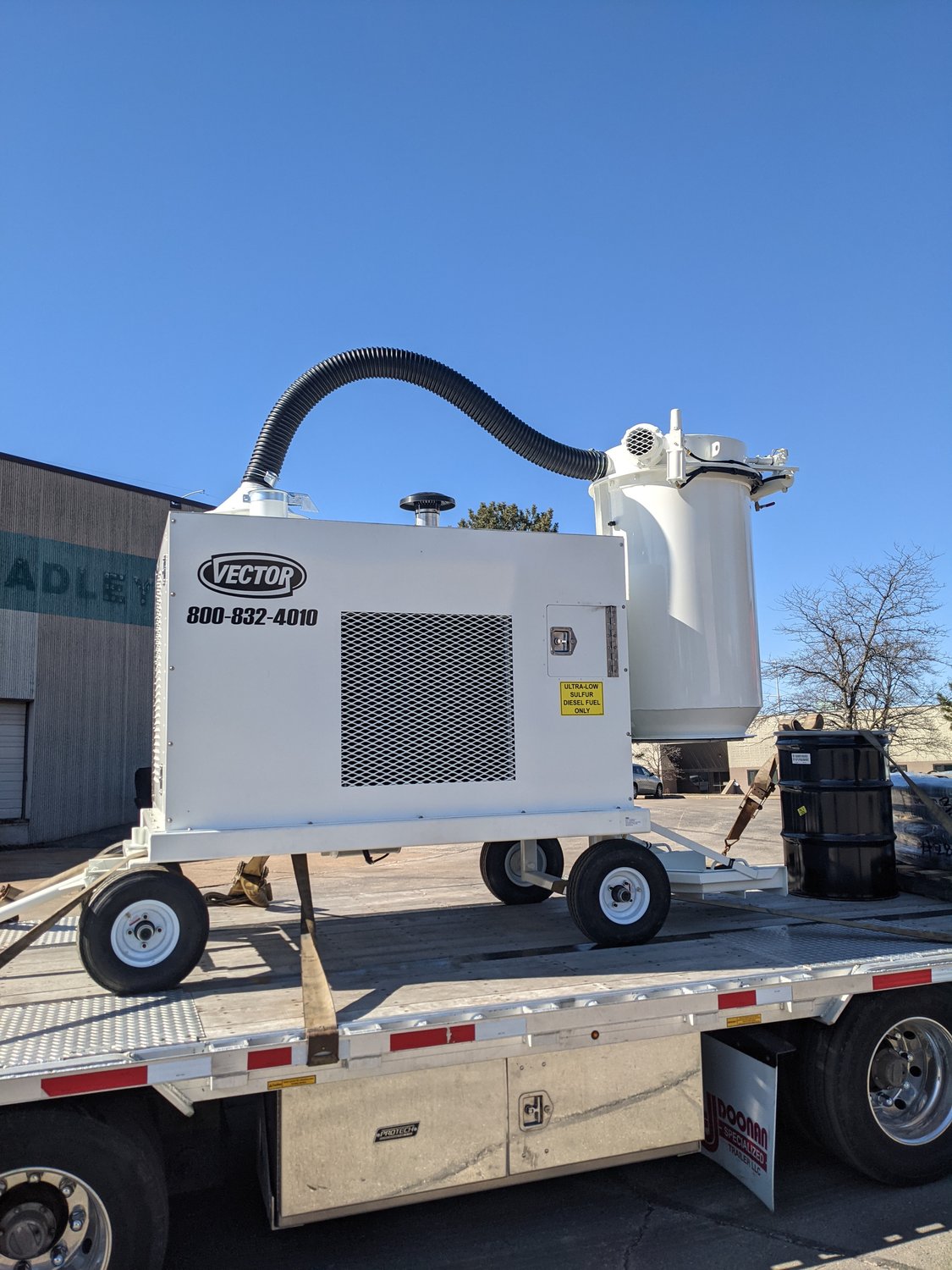

- SPARTAN II DIESEL
- SPARTAN II LP AT WORK
- SPARTAN FM
- SPARTAN FM WORKING
