Quality Industrial Vacuums by Vector Technologies

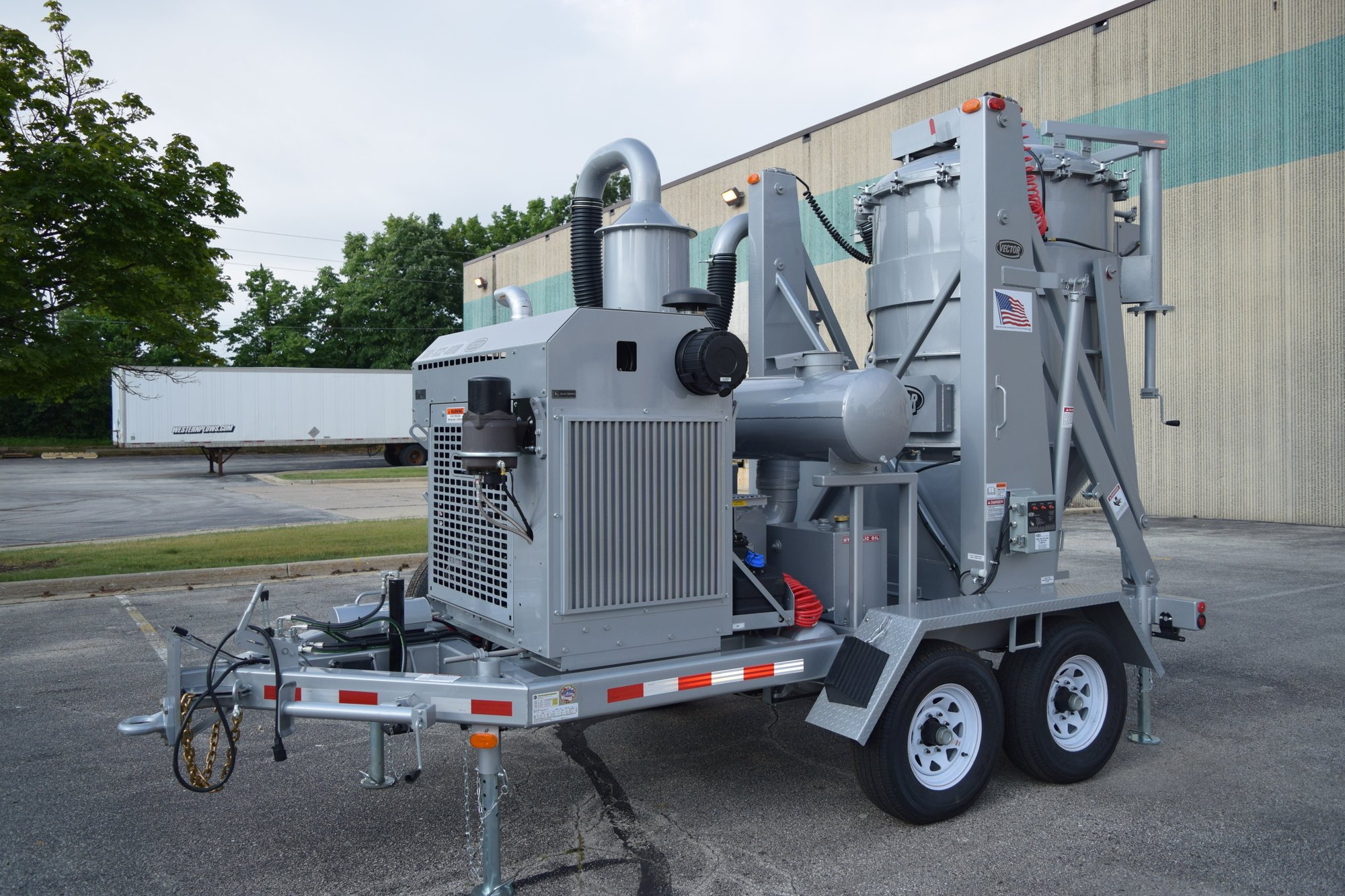

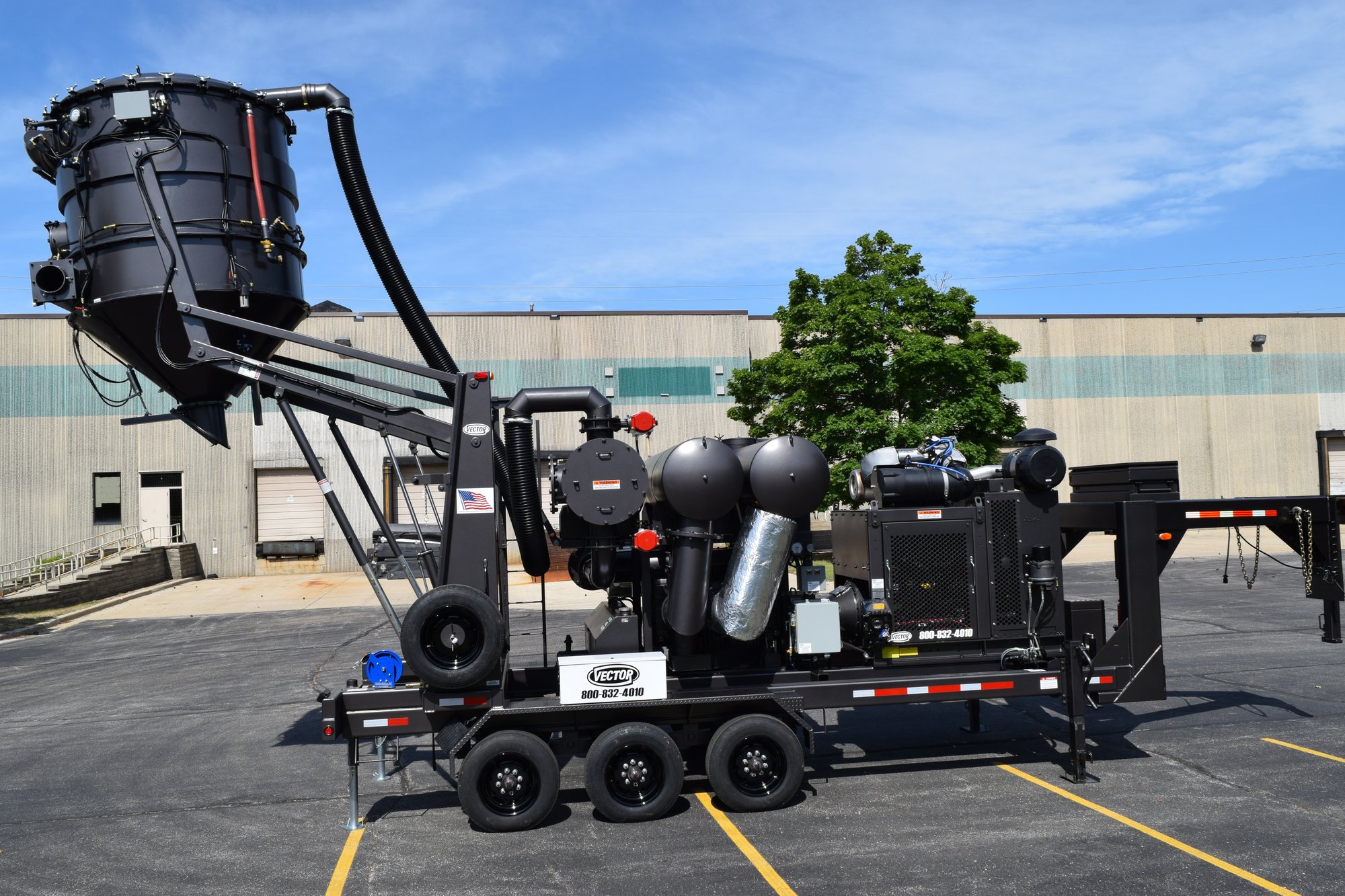

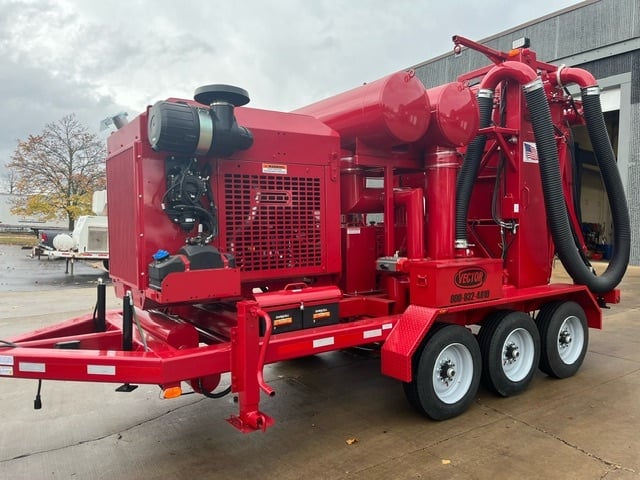

VecLoaders® are high-performance, compact industrial vacuum systems designed to handle a wide range of material conveyance needs. They efficiently move coal, ash, dirt, blast media, sand, stone, water, slurry, and other flowable bulk materials. Modular construction ensures quick integration and flexible use across diverse applications.
Unlike traditional vacuum trucks, VecLoaders remain on the job full-time. Each system is self-contained, capable of vacuuming and discharging materials—wet or dry—directly into dump trucks, dumpsters, hoppers, or other collection devices. VecLoaders can also return spilled materials directly onto conveyors or into processing systems. Many models deliver vacuum truck-equivalent power at a lower cost and smaller footprint, making them an efficient, space-saving alternative.
Specifications

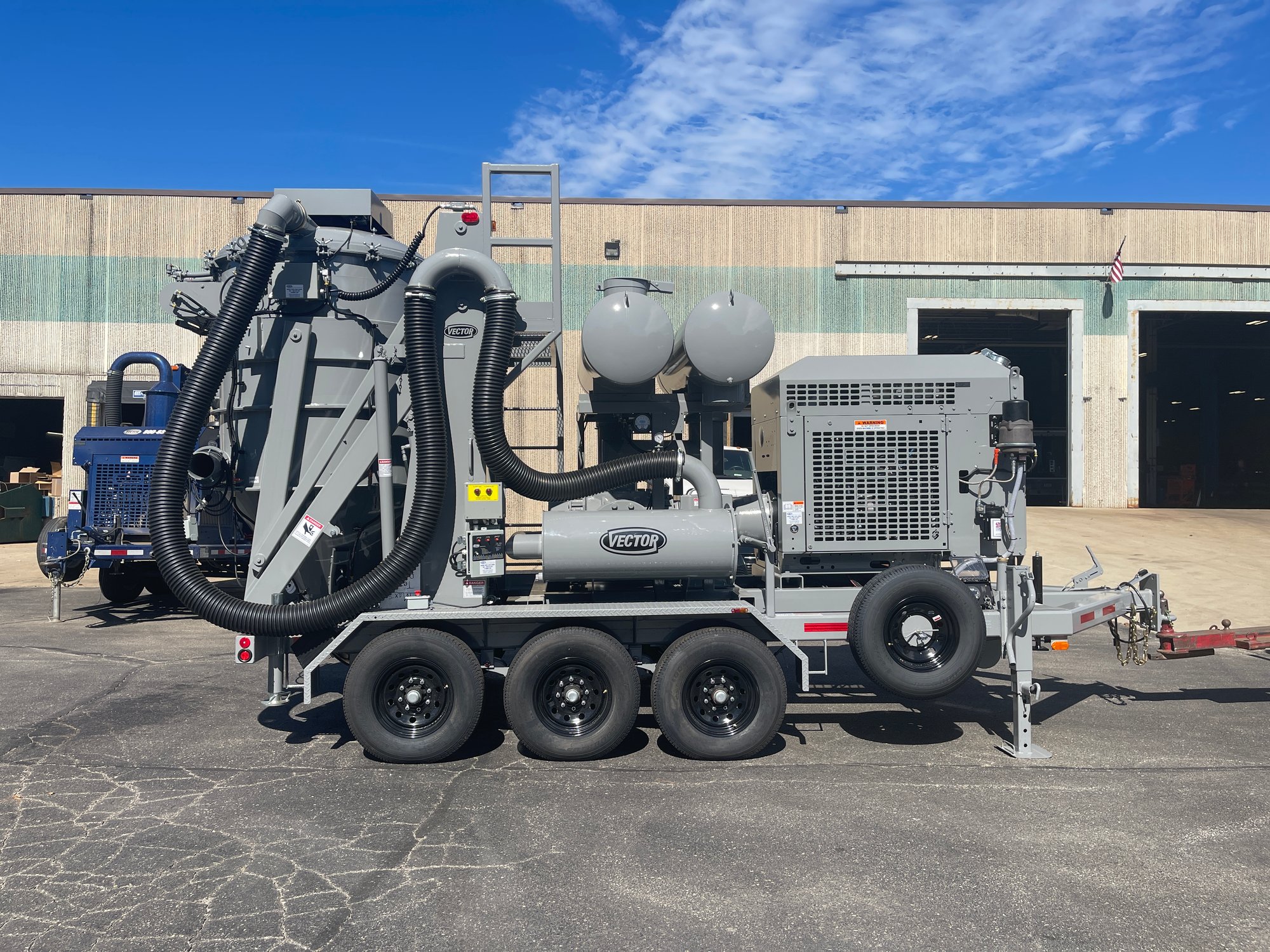

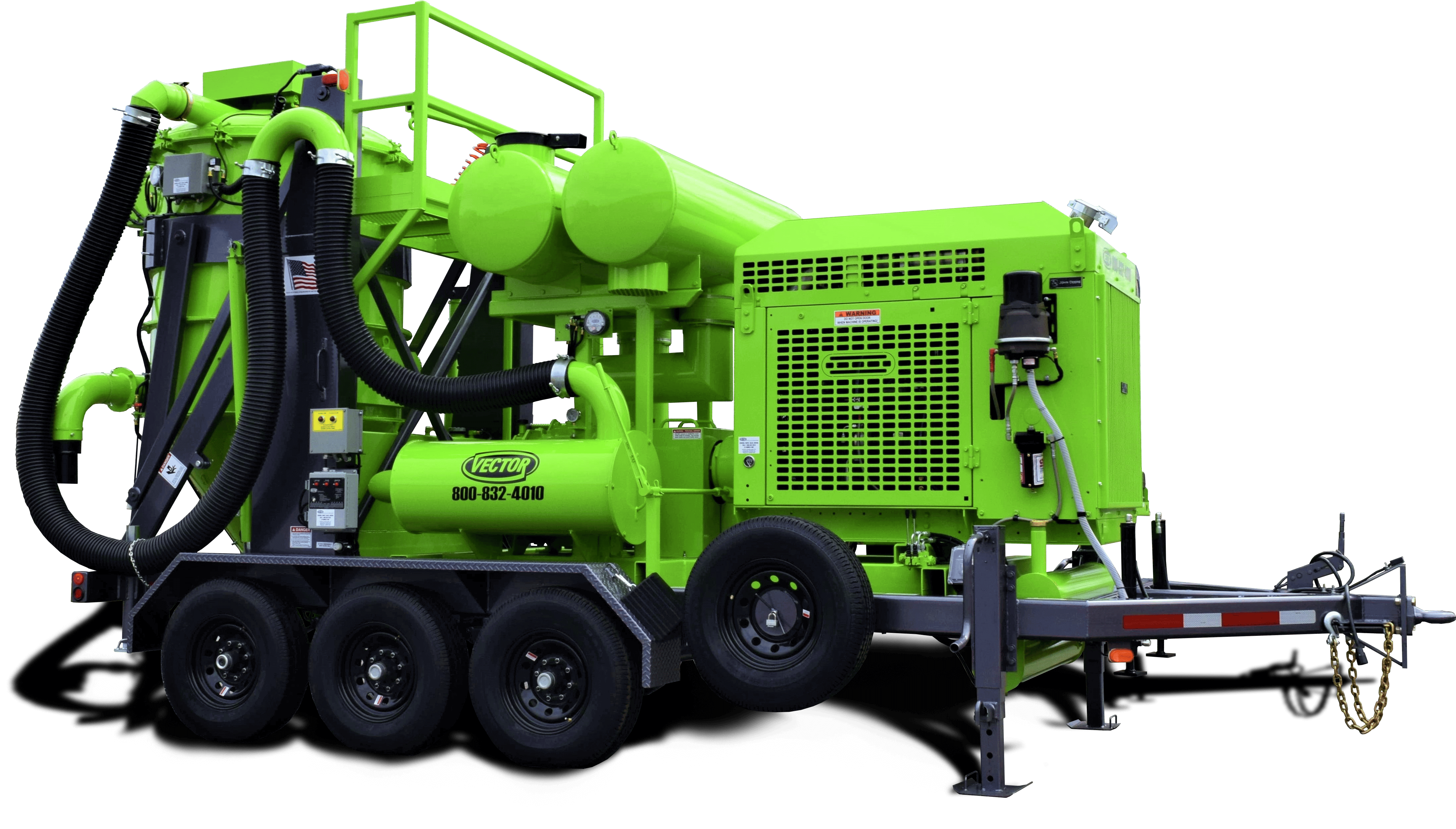

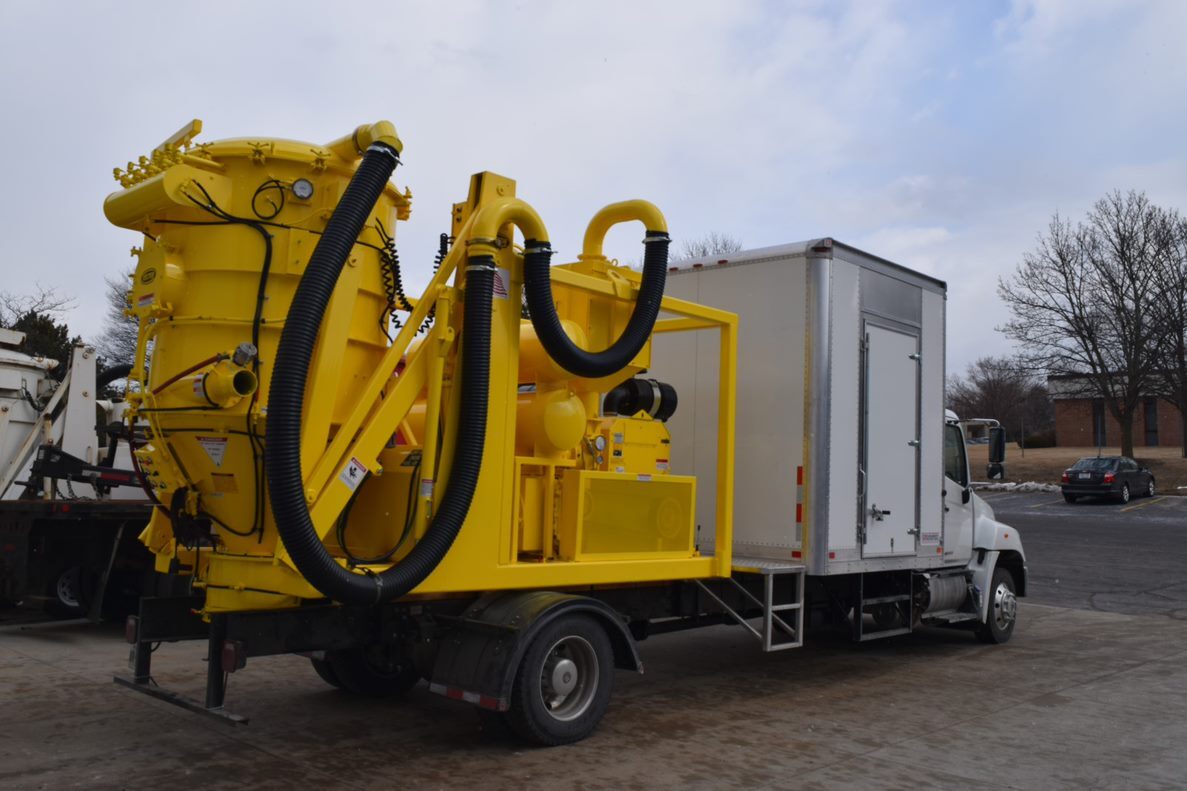

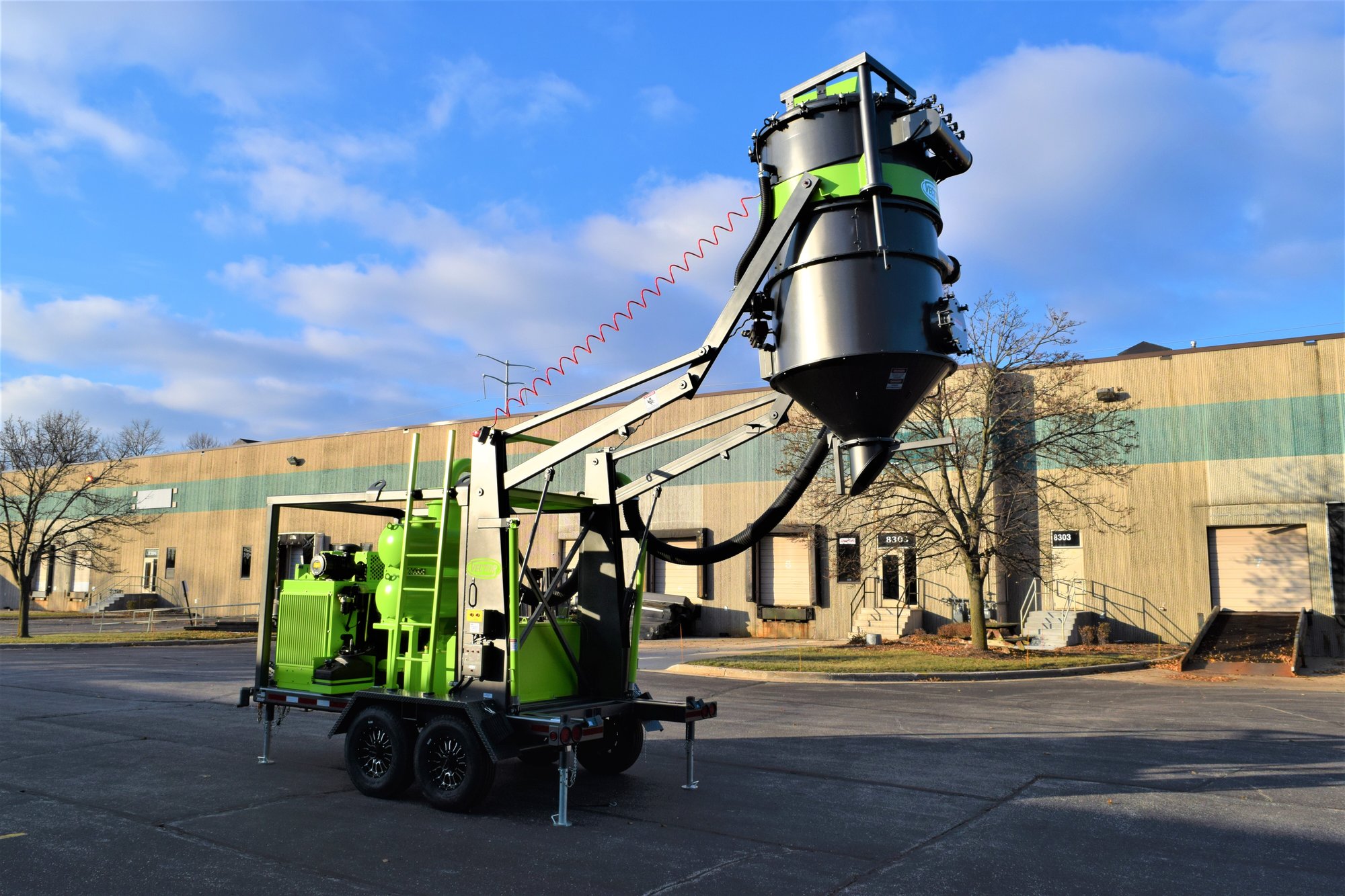

| VecLoader | 616 | 624 | 721 | 6100 | Mini 100* |
|---|---|---|---|---|---|
| Max: CFM/Hg | 2,446 / 28" | 3,670 / 16" | 3,658 / 28" | 6,150 / 28" | 1,340 / 28" |
| Diesel Kw | 170 | 155 | 225 | 350 | 99 |
| Baghouse Filtration | Coated bags pulse air cleaned | Coated bags pulse air cleaned | Coated bags pulse air cleaned | Coated bags pulse air cleaned | Coated bags pulse air cleaned |
| Secondary Filtration | Pleated cartridge | Pleated cartridge | Pleated cartridge | Pleated cartridge | Pleated cartridge |
| Max Hose Diameter | 5" | 6" | 6" | 8" | 4" |
| Dimensions (L x W x H) | 17' 5" x 8' 5" x 11' 2" | 17' 5" x 8' 5" x 11' 2" | 22' 5" x 8' 3" x 11' 4" | 24' 10" x 8' 5" x 11' 4" | 16' 1" x 7' 2" x 10' |
* VecLoader Mini is also available in 50 and 80 HP, please reach out for more information. Performance figures are averages based on easily conveyed products at shorter distances. Many factors affect overall vacuum productivity. Specifications are subject to change as improvements are continuously implemented.
.png?width=1400&height=942&name=pnggg145%20(2).png)
Cyclonic Baghouses and Collector Devices
Vector Technologies offers a full range of intermediate separation systems, including cyclones, separators, cyclonic baghouses, drum fillers, self-dumping hoppers, and other specialized equipment. Many models are available in trailer-mounted or skid-mounted configurations for flexible deployment. These systems provide excellent separation and, when used with dry bulk materials, capture most—if not all—“heavy” particles. They are commonly integrated into central vacuum systems for in-plant use or paired with vacuum trucks.
BH Series Cyclonic Baghouses/Collector Devices
The BH Series features a modular design for easy matching with Vector PM Series Power Modules or other vacuum sources, tailored to specific filtration and unloading needs.
Key Features
- Adjustable leg heights for customer-specified installation
- Tangential inlets and deflector plates
- Removable wear plates for easy maintenance
- Pulsed-cleaned Teflon-coated filters
- Real-time filter monitoring
Available Sizes
44", 54", 72", 92", and 108" (sizing based on airflow and material requirements)
Standard & Optional Features
- Gravity dump door for batch unloading
- Vacuum break timers for automatic operation
- Continuous vacuuming options: rotary valves, double dump, or posi-seal valves
- Optional enhancements: stainless steel cylinders and cones, explosion venting, high-temperature packages, hydraulically raised legs, sloped cones, air cannons, augers, and special coatings for corrosive materials
Vector’s Intermediate Separators and Stand-Alone Baghouses are engineered for high efficiency, durability, and flexibility, providing reliable performance in a variety of industrial applications.
Self-Dumping Hoppers and Drum Fillers
Intermediate Separation Systems
Vector offers a broad range of high-efficiency cyclones, separators, drum fillers, self-dumping hoppers, and other specialized intermediate separators. These systems are designed to deliver excellent material separation, especially when vacuuming dry bulk materials, where they reliably capture the majority of “heavy” particles.

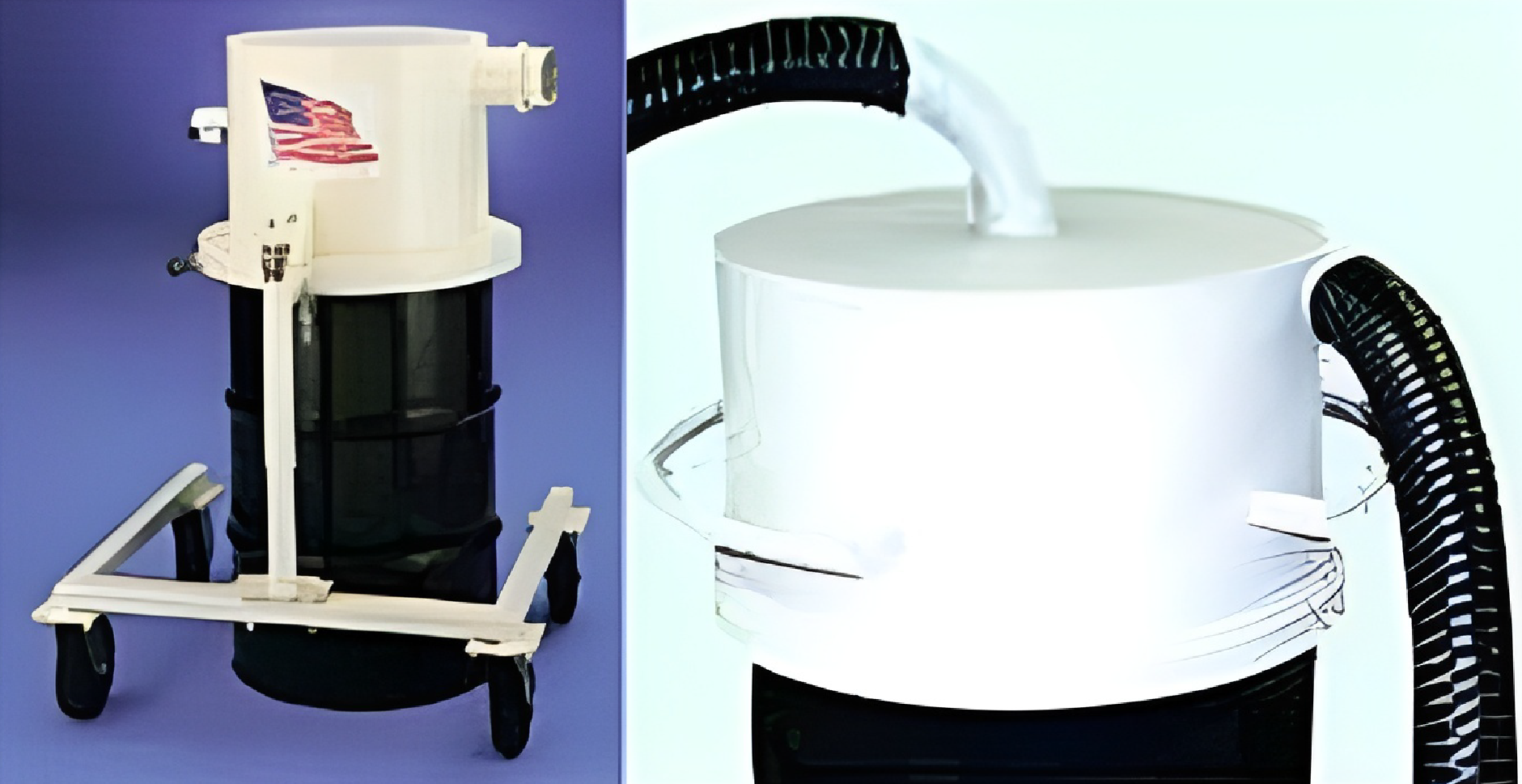

Drum Fillers
- Allow direct vacuuming into standard 55-gallon drums for convenience
- Ideal for handling sludge, sticky, or noxious materials you don’t want entering the main vacuum
- Useful in tight spaces where changing drums at the vacuum source is difficult
- Available in multiple configurations, including:
- With or without stands
- Replaceable wear sections
- Bin monitor sensors
Self-Dumping Hoppers
- Available in 1, 2, or 4-yard capacities
- Provide additional storage for bulk materials not suited for direct vacuuming
- Self-dumping design makes discharging into dump trucks, lugger boxes, or other transport devices safe and efficient
